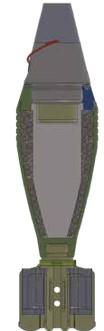

M49 A2 HE

MKE

MOD 257 TP

MKE MOD 260

Pre-Fragmented

MKE MOD 256

Training

Complete Round Weight

~1421 g

~1421 g

~1355 g

~1365 g

Complete Round Length

~243 mm

~ 243 mm

~ 244 mm

~ 243 mm

Fuze

MKE MOD 502 or AZDM 111 A2

MKE MOD 502 or AZDM 111 A2

MKE MOD 502 or AZDM 111 A2

MKE MOD 502 or AZDM 111 A2

(dummy)

Filler

TNT

Sorel Cement

Comp B.

Sand+wood chips

Filler Weight

~170 g

~ 170 g

~ 145 g

-

Ignition Cartridge

M5A1

M5A1

M5A1

M5A1 (inert)

Primer

M32

M32

M32

M32 (inert)

Muzzle Velocity

~158 m/s

~158 m/s

~158 m/s

-

Maximum Range

~1814 m

~1814 m

~1712 m

-

Impact Diameter

~13 m

-

~20 m

-

Propellant

M3A1, max 4 propellant increments

M3A1, max 4 propellant increments

M3A1, max 4 propellant increments

-

Pacfiing

One round / fiber container, 10 containers / wooden box

Weapon to be Used

60 mm Commando Mortar

-
