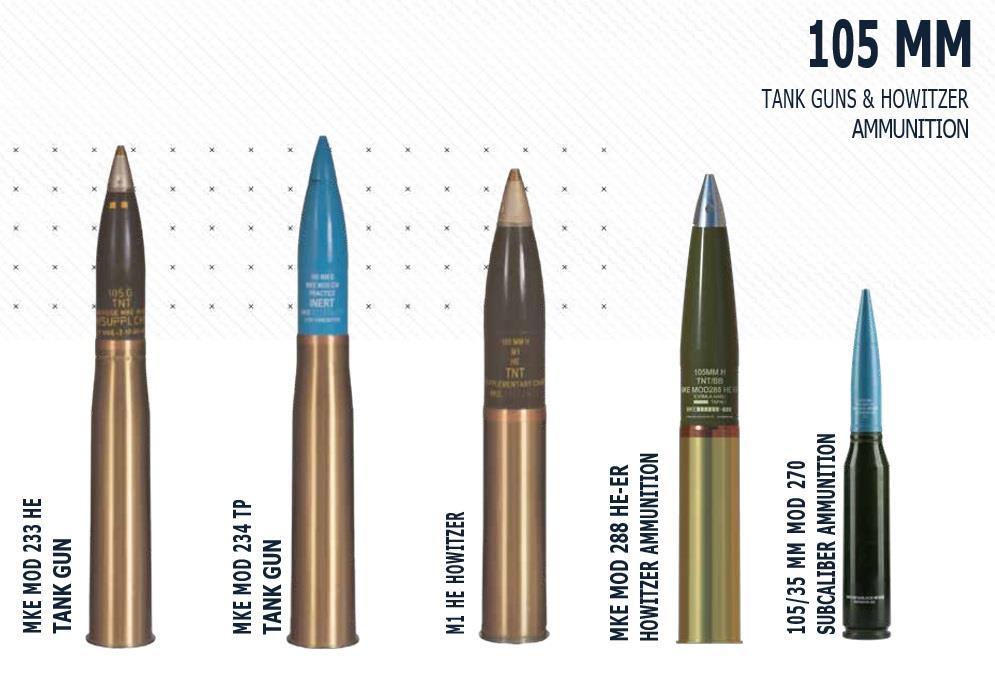

TANK GUN HE MKE MOD 233

TANK GUN TP MKE MOD 234

M1 HE HOWITZER

105/35 MM

MOD 270 SUBCALIBER AMMUNITION

MKE MOD 288

HE-ER HOWITZER AMMUNITION

Complete Round Weight

~24505 g

~24125 g

~19000 g

~1570 g

~14500 g

Complete Round Length

~1028 mm

~1028 mm

~790 mm

~387 mm

~ 850 mm

Cartridge Case

MKE MOD 26

MKE MOD 26

M14

-

M14

Projectile Weight

-

-

-

550 g

~10680 g

Filler

TNT

Sorel cement

TNT

-

TNT

Filler Weight

~1.99 kg

-

~1.98 kg

-

~2.2 kg

Fuze

M557, MKE MOD 90, MKE MOD 92,

MKE MOD 134,

MKE MOD 135, MKE MOD184

M73 (Dummy fuze)

M557, MKE MOD 90, MKE MOD 92,

MKE MOD 134,

MKE MOD 135, MKE MOD184

Dummy fuze

M557, MKE MOD 90, MKE MOD 92,

MKE MOD 134,

MKE MOD 135, MKE MOD184

Primer

-

-

-

MKE MOD 67

-

Propellant

M1

M1

M67 Dualgrain

NC.01.T.35. OE.M.SMS

105 mm ER Propellant

Propellant Weight

~3 kg

~3 kg

~1,24 kg

335 g

2450 g

Muzzle Velocity

~683 m/s

~683 m/s

~465 m/s

1175 m/s

~695 m/s

Maximum Range

~11000 m

~11000 m

~11000 m

11000 m

~17500 m

Pacfiing

1 round / fiber container,

2 fiber containers / wooden box

1 round / fiber container,

25 fiber containers / wooden box

1 round / fiber container, 2 fiber containers / wooden box

Weapon to be Used

Leopard 1/M48T5 tanks with

L7A3 cannon, M48A5 tank with

M68 cannon

Leopard 1/M48T5 tanks with

L7A3 cannon, M48A5 tank with M68 cannon

M101/M101A1 howitzers with M2A1/M2 A2 cannons,

M52/M52A1 howitzers with

M49 cannon

35 mm Barrel placed in 105 mm Tank Gun

M101/M101A1

howitzers with M2A1/ M2 A2 cannons, M52/ M52A1 howitzers with M49 cannon
