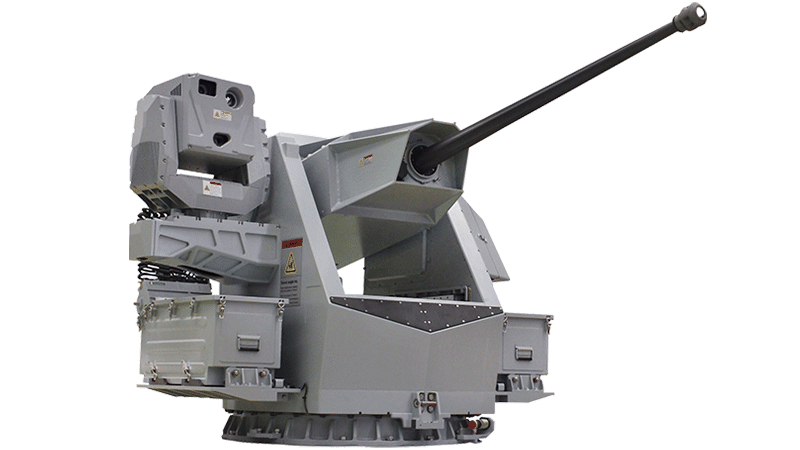

SMASH 200/30 is a Remote Controlled Naval Gun System fitted with a 30 mm gun integrated on a stabilized pedestal with independent Electro-Optic Sight and surveillance mode (without aiming the gun). The system has excellent tracking and firing ability with a very high hit accuracy. It can be fed via two separate ammunition lines selected by the operator, using the remote operating panel.

Effective against asymmetric threats

Day/night operation under various weather and terrain conditions

Automatic target detection and tracking

Automatic ballistic calculation

Automatic slew to targets assigned from the C3, radar, target designator

Integration with Combat Management System

Advanced graphical user interface

Picture-In-Picture (PIP)

High Accuracy Dual-Axis Gyro Stabilized Independent Electro- Optic Sight

Surveillance mode (without aiming the gun)

Manual operation as a back-up mode

Built-in Test Capabilities

Back-up Power (Battery Supply)

Embedded Video Recording Capabilities

Easy to integrate

No deck penetration (except cables)

High reliability

Modular structure for upgrades and options

Sub-Units

Turret

System Operating Panel

Gun Control Unit

Mission Computer

Commander Control Unit

Electro-Optic Sight

Thermal Camera

TV Camera

Laser Range Finder

Manuel Control Panel

Servo Controller

Power Unit

Safety Switch

Slipring (Optional)

Electronic Control and Interface Unit

Technical Data

Turret Weight:  <1400 kg (Including gun and ammunition)

Gun: 30mm Mk44S Bushmaster II

Rate of Fire: 200 rounds/min

Ammunition Feeding: Dual

Ammunition Capacity: 2 x 100 pcs

Gun Elevation Angle: -20(±2)° / +70(±2)°

Gun Traverse Angle: ±135° (without slipring) / n x 360° (with slipring)

Gun Angular Speed: 60°/s

EO Elevation Angle: -30(±2)° / +80(±2)°

EO Traverse Angle: ±10° (with respect to gun turret)

Power Input: 110/220 VAC 50/60Hz

Applications

Asymmetric Warfare

Counter-Terrorism/Anti-Smuggling

Coastal Defence

Base Protection

Naval Platforms

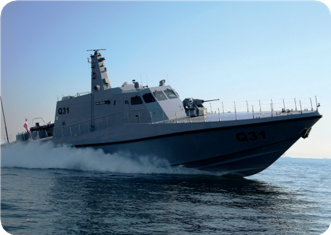

Patrol Boats

Coast Guard Boats

Combat Ships

Landing Ships

Contact us for more details: marketing@aselsan.com
