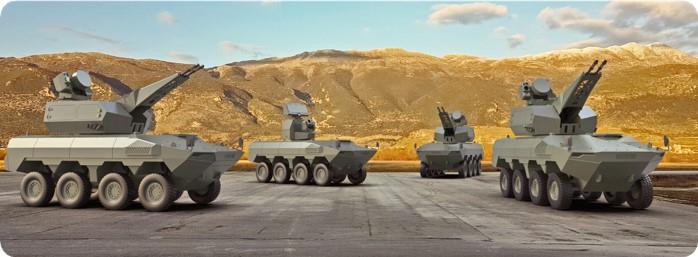

KORKUT 140/35 Air Defense System is developed for the effective air defense of mechanized troops and mobile units. KORKUT 140/35 Air Defense System operates as platoons consisting of 3 Gun Systems and 1 Command & Control System.KORKUT 140/35 Gun System has capability of firing programmable airburst ammunition (ATOM 35 ABM) which is developed by ASELSAN. ATOM 35 ABM and ATOM 35 I-ABM, which is an upgraded version with increased number of particals, highly improves the effectiveness of ground-based air defense against modern air threatsincluding air-to-ground missiles, cruise missiles and UAVs.
General Specifications of Command & Control Vehicle
• Mission Execution with Armored Mechanized Troops
• Command & Control of KORKUT Gun Systems
• Target Acquisition, Identification & Tracking with 3D Search Radar
• Advanced Threat Evaluation and Weapon Assignment
Algorithms with local air picture generation
• Coordinated Operation with Higher Echelon C2 Units
• Integrated Identification Friend or Foe (IFF) System
• Command and control functionality and interfaces can be implemented for other air defense systems
General Specifications of Gun System
• Stabilized Gun Turret with firing-on-the-move capability
• High performance Fire Control Radar and Electro/Optical Sensors for target tracking
• High fire-power with 35mm twin gun
• Automatic Linkless Ammunition Feed Mechanism (ALAFM) with the ability to switch between two different types of ammunition

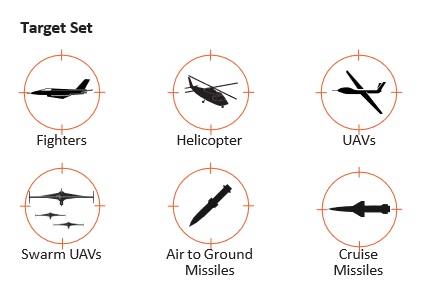

• Effective use of Air Burst Ammunition against Fixed/Rotary Wing Aircrafts, Cruise Missiles, Air-to-Ground Missiles and Unmanned Aerial Vehicles (UAVs)
• Coordinated Operation with Higher Echelon C2 Units
• Advanced fire control algorithms
Technical Specifications
• Fire-Power : 1100 rpm
• Effective Range : 4 km
• Fighter Track Initiation Range : > 35 km
• Ready-to-Fire Ammunition: 200 rounds
• Max Road Speed: > 105 km/h
• Gradient: 60%
• Side Slope: 30%
