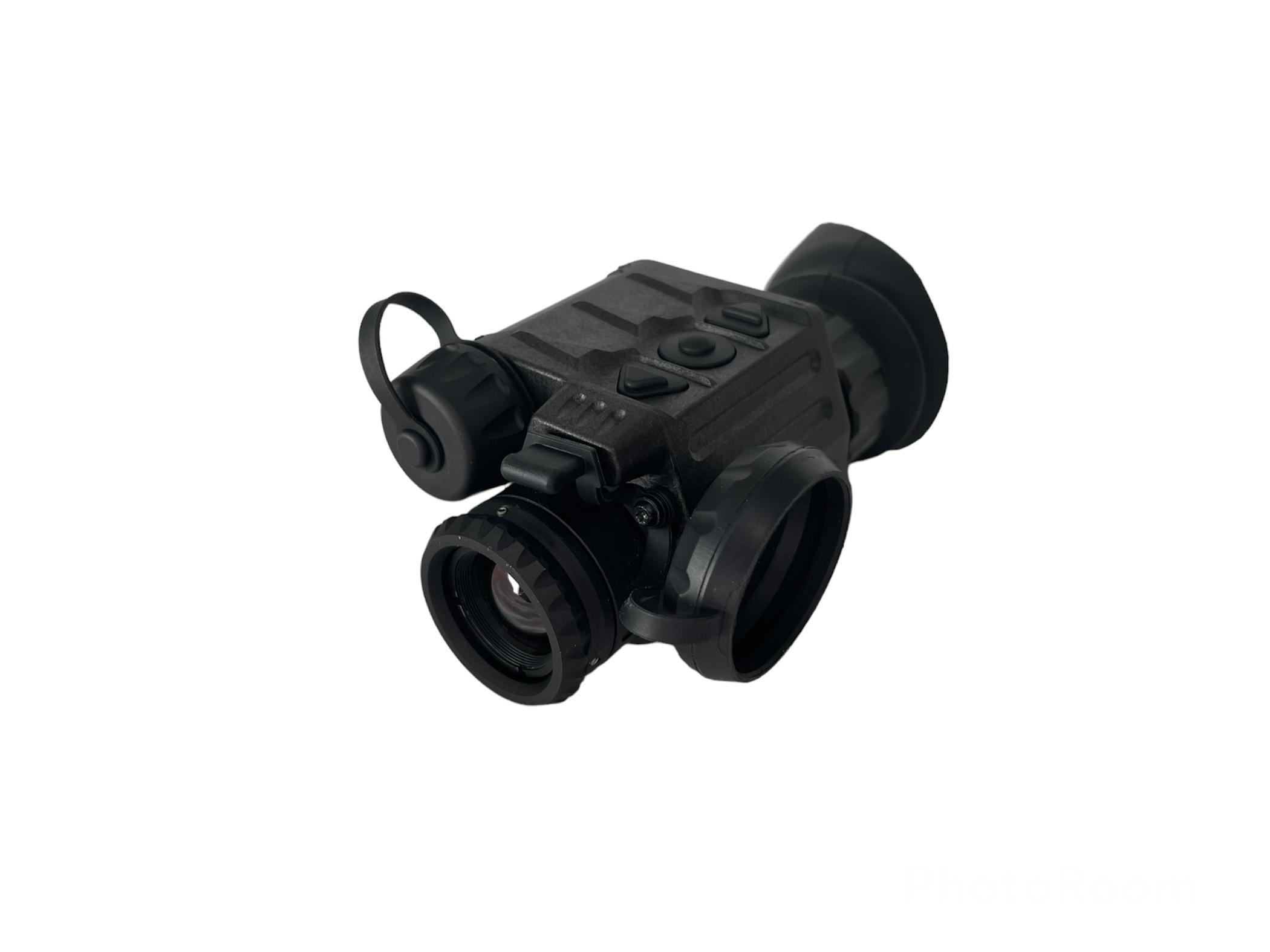

The Sidekick 640 is the smallest fully multi-functional 12-micron 640 thermal imaging monocular on the market. This unit boasts a fast 60Hz frame rate for smooth operation and industry-best, outstanding visual acuity, based on Armasight’s Iron Wolf thermal technology platform. Weighing under 250 grams, the Sidekick can be used as a handheld mini-monocular or can be headset/helmet mounted utilizing the built-in mini-rail for hands-free operation. The high definition 1024×768 OLED display provides a crisp image, with iconography providing key information. The Sidekick utilizes simplified 3 button controls that allow for easy manipulation in the field and offers one-touch in-unit video recording to capture all of your experiences.

Features

• Multiple Color Palettes
• Intuitive 3-Button Control
• 1.5h Runtime on 1 x CR123A Battery, 5.5h on 2 Batteries with Included Battery Extender
• Image Detail Enhancement
• Dovetail Mini-Rail Included for Helmet Mounting (with Optional Mount)
• Works with Rayvn Group Modular Bridge Mount for Helmet-Mounting with PVS-14, MNVD, or Second Sidekick (sold separately)
• Ability to Shift Thermal Image to Collimate Sidekick Image with NVD when Bridged
• Video Recording & Image Capture
• USB Video Stream
• USB-C Interface for External Devices
• Compass
• Battery Status Indicator
• ULTEM Composite Body and Ergonomic Design
• Designed and Assembled in the USA from U.S. and Global Component

Product Specifications:

Detector Type: ArmaCORE™ 640x480 12um Thermal Core

Refresh Rate: 60 Hz

Thermal Sensitivity: NETD < 40mK

Detection Range: 709m On a Human Sized Target

Recognition Range: 177m on a Human Sized Target

Identification Range: 111m on a Human Sized Target

Eye Relief: 15mm

Field of View: 24.16° x 17.37°

Optical Magnification: 1x

Digital Zoom: 1x - 4x

Display: XGA (1024 x 768) OLED

Wireless: None

Graphics: Active On-Screen Graphics and Iconology

Lens System: F/1.00; 19mm manual focus

Diopter Adjustment: -5 to +5 dpt

Power Supply: 1 x CR123A or 2 x CR123A / 1 x 16650

Battery Life: 1x / 2x CR123A - 1.5h / 5.5h at 20°C (68°F)

Low Battery Indicator: Yes

Memory: 4 Hours of Video

Image Processing: Digital Enhancement

Environmental Rating: IP67

Operating Temperature: -40° C to +50° C (-40° F to + 122° F)

Dimensions: 145 x 50 x 65mm / 5.7 x 1.9 x 2.6in

Weight: 242g / 0.53lbs

Warranty: 3 years w/ registration

Color: Black

Package Includes

• Sidekick 640 Mini Thermal Monocular
• 2 x CR123A Battery
• USB-C Cable
• Lens Cloth
• Soft Case
• Product Manual
