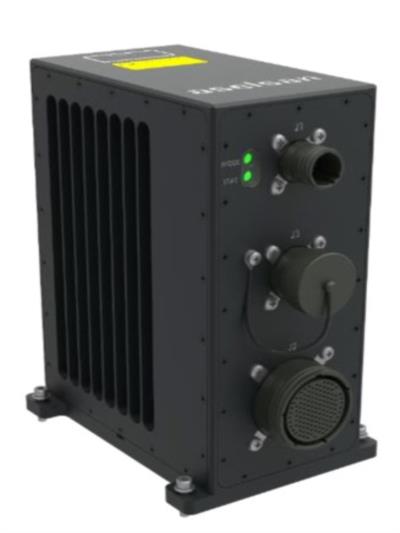

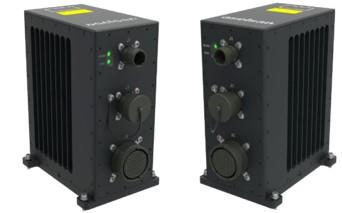

ASELSAN Deterministic Network Switch (ASELPINE ADNS) is a determi- nistic ethernet switch that supports both IEEE 802.3 Standard Ethernet Traffic and IEEE 802.1 Time-Sensitive Networking (TSN). ADNS is designed to be compatible with IEEE P802.1DP/SAE AS6675 TSN for Aerospace pro- file. ASELPINE ADNS will be compliant to the Synchronous Profile of IEEE 802.1DP TSN Aerospace profile.

Supported Standards

• IEEE Std 802.3-2018
• IEEE Std 802.1AS-2020
• IEEE Std 802.1Q-2018
• IEEE Std 802.1Qci-2017
• IEEE Std 802.1Qbv-2015
• IEEE Std 802.1CB-2017

Switching Capabilities

Configurable to operate as IEEE 802.3 Standard Ethernet or IEEE 802.1 Ti- me-Sensitive Networking (TSN) Ethernet.

• Configurable Layer 2 (MAC Address) or Layer 3 (IP Address) Switching & IP Multicasting Support
• VLAN aware Forwarding and Filtering Support
• ICMP Error & Query Message Reporting
• Per-Stream Filtering and Policing in Each Ingress Port
• Null Stream Identification and Source MAC and VLAN Stream Identification

Time Synchronization

• PTP Relay Instance and Grandmaster PTP Instance Support
• External Port Configurations Support
• Up to 3 gPTP Time Domains Support
• 1PPS and BCD Time Code Support According to ICD-GPS-060B

Configuration

• ARINC 615A-3 Compliant Data Loading
• Selectable Configuration Modes via Configuration O/G Inputs

Monitoring & Maintenance

• SNMPv2c for Status Monitoring
• Maintenance & Mirroring Ethernet Support

Interfaces

• 12x 10/100/1000 Mbit/s Full Duplex Ethernet
• 4x 10/100 Mbit/s Full Duplex Ethernet
• 8x Addressing & Configuration O/G Input
• 1x 1PPS Input & 1x BCD_TIME_Code Input

Physical Specifications

• Dimensions: 110 mm (W) x 210 mm (H) x 180 mm (L)
• Weight: < 2.25 kg

Technical Specifications

• Power Input: 28 VDC (Nominal)
• Power Consumption: 20W (Nominal) / 25W (Maximum)
• Power Hold-up for Short Time Power Interrupts

Environmental Conditions

• Operating Temperature and Altitude: -40°C / +71°C, 55.000 ft
• Storage Temperature: -55°C / +85°C

Qualifications

• DO-160G
